| Model: LW-C-RGBM-68 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Specification |
|
|
|
|
|
|
|
|
|
| Input voltage |
DC12V-DC24V |
|
|
| Max Current Load |
8A/CH×3 |
|
|
| Max Output Power |
290W(12V)/580W(24V) |
|
|
| Scale Levels |
256 LEVEL /CH×3 |
|
|
| Product Dimension |
L165xW56xH36 mm |
|
|
| Type for Plug |
50m with block |
|
|
| Remote Control Distance |
L125×W52×H40(mm) |
|
|
| Control Type |
Common anode |
|
|
|
|
|
|
|
|
|
|
|
|
| Brief Introduction: |
|
|
|
|
|
| ● LED controller is a univers al RGB controller for entire color changing, which adopted high-performance single-chip and the most advanced PWM (Pulse-Width-Modulation) controlling technology. It can control all 4-pin 3-loop LED RGB full color lights such as LED module, LED strip, LED SMD tape, and high power LED projector, wall-washer, flood light, underwater lamp etc. Adopt Flame retardant PC ABS casing, touch function button and exquisite appearance. |
|
|
|
|
|
|
|
|
|
|
|
|
| Specialty： |
|
|
|
|
|
| ● Automatically adapt to LED light which works from DC5V-24V or DC12V-24V. |
|
|
● 256 levels of grey scale per RGB, even & smooth for color gradual changes, without
any flashes. |
|
|
| ● 36 fantastic modes such as color smooth, color skipping, horserace, strobe, etc. |
|
|
| ● Can choose a changing speed and brightness in a certain mode independently. |
|
|
| ● Can stop at static single color, speed & brightness adjustable at pause status. |
|
|
|
|
|
|
|
|

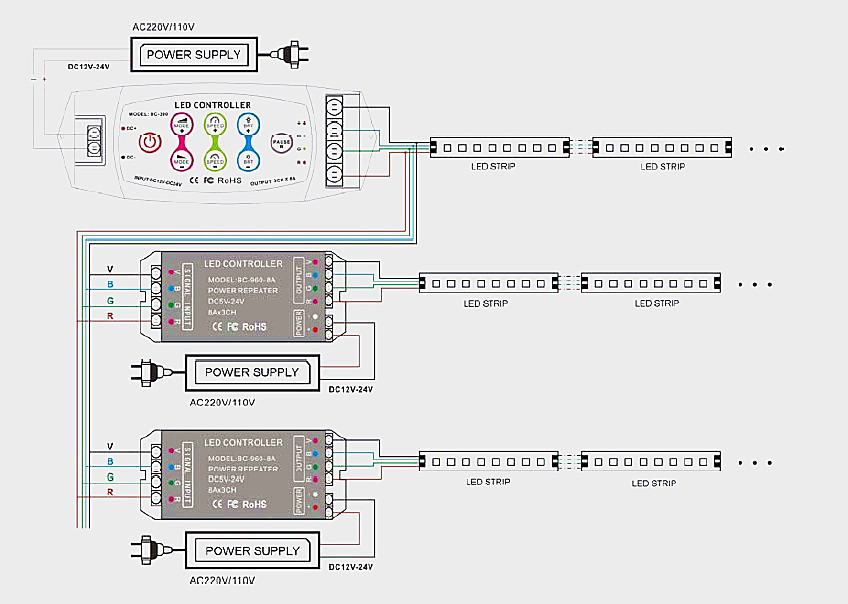

| Conjunction Diagram: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ● Connected to LED module as an example |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Caution & Warning： |
|
|
|
|
|
| ● To reduce the risk of component damage and fire caused by short circuit, make sure correct connection. |
|
|
| ● Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature. |
|
|
| ● Check if the voltage and power adapter suit the controller (please select DC12-24V power supply with constant voltage) |
|
|
| ● Don’t connect cables with power on; make sure a correct connection and no short circuit checked with instrument before power on. |
|
|
| ● Please don’t open controller cover and operate if problems occur. |
|
|
